Minka-Aire logo

Sabot - LED 52" Ceiling Fan

F745-ORB Minka-Aire®
NOTIFY ME
Description

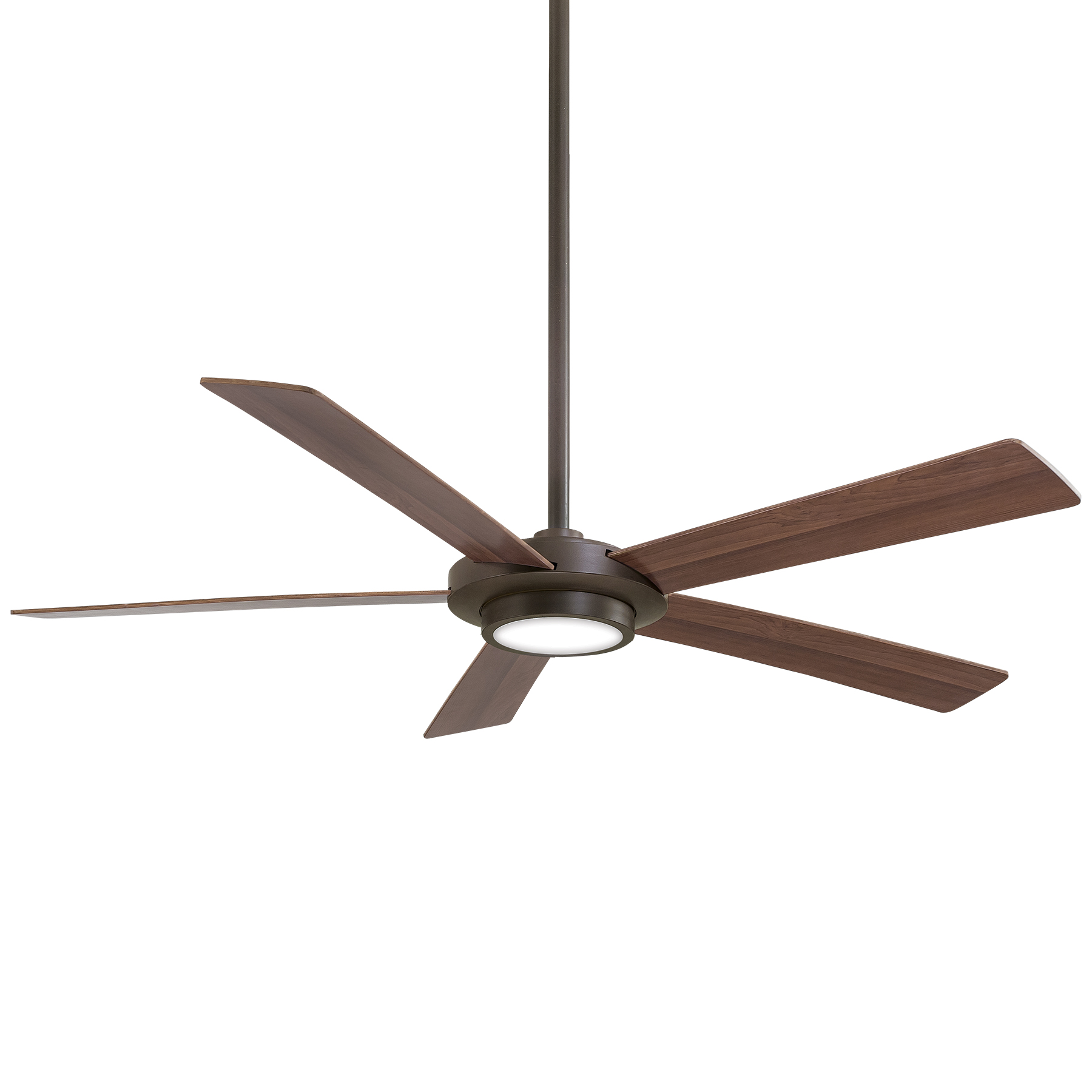

52" 5-Blade LED Ceiling Fan in Oil Rubbed Bronze Finish with Reversible Medium Maple or Dark Walnut Blades with White Lens

Available Finish: Oil Rubbed Bronze

PRODUCT FAMILY

Sabot by Minka-Aire®

F745-BN
Sabot - LED 52" Ceiling Fan

F745-BN Minka-Aire®

F745-DK
Sabot - LED 52" Ceiling Fan

F745-DK Minka-Aire®

F745-ORB
Sabot - LED 52" Ceiling Fan

F745-ORB Minka-Aire®

F745-CL
Sabot - LED 52" Ceiling Fan

F745-CL Minka-Aire®

YOU MAY ALSO LIKE

F553L-WHF
Minute - LED 52" Ceiling Fan

F553L-WHF Minka-Aire®

F847L-HBZ/MP
Timber - LED 84" Ceiling Fan

F847L-HBZ/MP Minka-Aire®

F553L-BN/DW
Minute - LED 52" Ceiling Fan

F553L-BN/DW Minka-Aire®

F847L-HBZ/AW
Timber - LED 84" Ceiling Fan

F847L-HBZ/AW Minka-Aire®

F553L-ORB
Minute - LED 52" Ceiling Fan

F553L-ORB Minka-Aire®

F553L-CL
Minute - LED 52" Ceiling Fan

F553L-CL Minka-Aire®

Sabot - LED 52" Ceiling Fan

SKU: F745-ORB
Brand: Minka-Aire®
Finish: Oil Rubbed Bronze

Measurements

Blade Material: PLYWOOD W/PAPER OVERLAY MED MAPLE/DARK MAPLE
Blade Sweep: 52
Blade Pitch: 12
Downrod 1: 6
Power: DC
Motor Size: DC 172x12mm

Control Method

Control Type: FULL FUNCTION HAND HELD REMOTE CONTROL WITH DC MOTOR RECEIVER
Reverse Capable: Yes

Lamping

Light Kit: Yes
Light Kit Description: SAMSUNG 18W LED
Bulb: Z32 LED
Bulb/LED Included: Yes
Socket Type: Y30 LED MODULE
Max Wattage: 18
Dimmable: Y

Shade

Shade Finish: WHITE
Shade Qty: 1

Low Speed

RPM: 51
Amps: 0.06
Watts: 2.6
CFM: 1344.0

High Speed

RPM: 179
Amps: 0.53
Watts: 36.4
CFM: 4941.0

energy-guide

Patent

U.S. Patent(s): D795,412; D804,646; D831,187; D844,770

pdf icon

Instruction Manual - English

download pdf
pdf icon

Instruction Manual - Spanish

download pdf
pdf icon

Product Specifications

download pdf
