Orb - LED 54" Ceiling Fan

F623L-BC/SBR Minka-Aire®
NOTIFY ME
Description

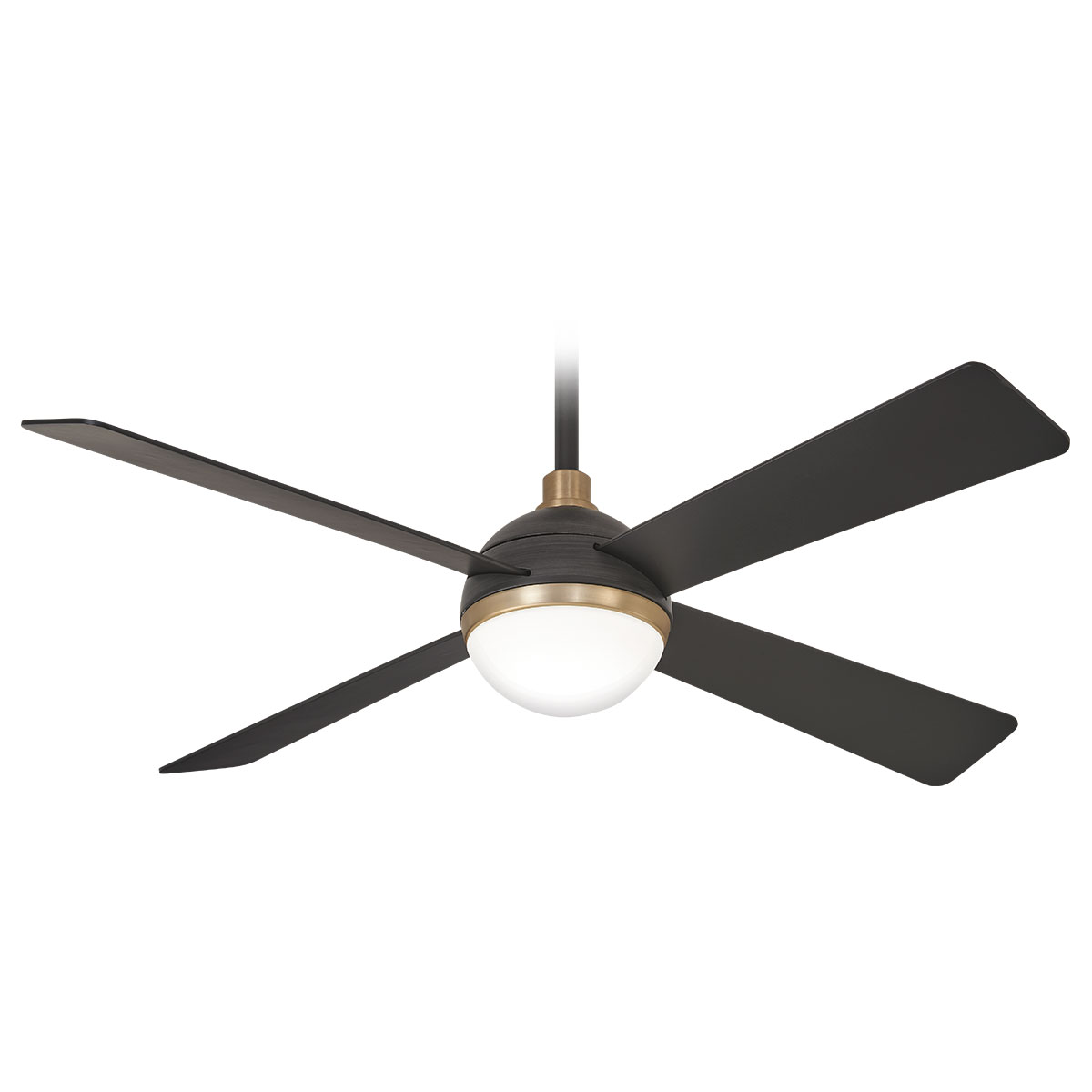

54" 4-Blade LED Ceiling Fan in a Brushed Carbon with Soft Brass Finish with Brushed Carbon Blades and Etched Opal Glass

Available Finish: Brushed Carbon with Soft Brass

PRODUCT FAMILY

Orb by Minka-Aire®

F623L-WHF/BN
Orb - LED 54" Ceiling Fan

F623L-WHF/BN Minka-Aire®

F623L-BBR/SBR
Orb - LED 54" Ceiling Fan

F623L-BBR/SBR Minka-Aire®

F623L-BC/SBR
Orb - LED 54" Ceiling Fan

F623L-BC/SBR Minka-Aire®

F623L-BS/BN
Orb - LED 54" Ceiling Fan

F623L-BS/BN Minka-Aire®

F623L-WHF/SBR
Orb - LED 54" Ceiling Fan

F623L-WHF/SBR Minka-Aire®

YOU MAY ALSO LIKE

F903L-SBR/MBK
Artemis™ IV - LED 64" Ceiling Fan

F903L-SBR/MBK Minka-Aire®

F828-BN/WH
Symbio - LED 56" Ceiling Fan

F828-BN/WH Minka-Aire®

F617L-GM
Raptor - LED 60" Ceiling Fan

F617L-GM Minka-Aire®

F684L-MBK/BN
Clean - LED 60" Ceiling Fan

F684L-MBK/BN Minka-Aire®

F796L-BN/SL
Falco - 54" LED Ceiling Fan

F796L-BN/SL Minka-Aire®

F796L-CL
Falco - 54" LED Ceiling Fan

F796L-CL Minka-Aire®

F844-CL
Light Wave - LED 52" Ceiling Fan

F844-CL Minka-Aire®

F617L-WHF
Raptor - LED 60" Ceiling Fan

F617L-WHF Minka-Aire®

F844-WH
Light Wave - LED 52" Ceiling Fan

F844-WH Minka-Aire®

F617L-BN
Raptor - LED 60" Ceiling Fan

F617L-BN Minka-Aire®

Orb - LED 54" Ceiling Fan

SKU: F623L-BC/SBR
Brand: Minka-Aire®
Finish: Brushed Carbon with Soft Brass

Measurements

Blade Material: PLYWOOD WITH PAPER OVERLAY
Blade Sweep: 54
Blade Pitch: 12
Downrod 1: 6
Power: AC
Motor Size: AC 153 X 17 MM

Control Method

Control Type: 3-SPEED HAND HELD REMOTE WITH CANOPY RECEIVER & MANUAL REVERSE
Reverse Capable: Yes

Lamping

Light Kit: Yes
Light Kit Description: SAMSUNG 16W LED LIGHT
Bulb: Z42 LED
Bulb/LED Included: Yes
Socket Type: Y40 LED MODULE
Max Wattage: 16
Dimmable: Y

Shade

Shade Finish: ECTHED OPAL
Shade Qty: 1

Low Speed

RPM: 76
Amps: 0.26
Watts: 15.91
CFM: 2257.0

High Speed

RPM: 163
Amps: 0.5
Watts: 59.62
CFM: 4985.0

energy-guide

pdf icon

Instruction Manual - English

download pdf
pdf icon

Instruction Manual - Spanish

download pdf
pdf icon

Product Specifications

download pdf
