Swept - LED 56" Ceiling Fan

F543L-KA Minka-Aire®
NOTIFY ME
Description

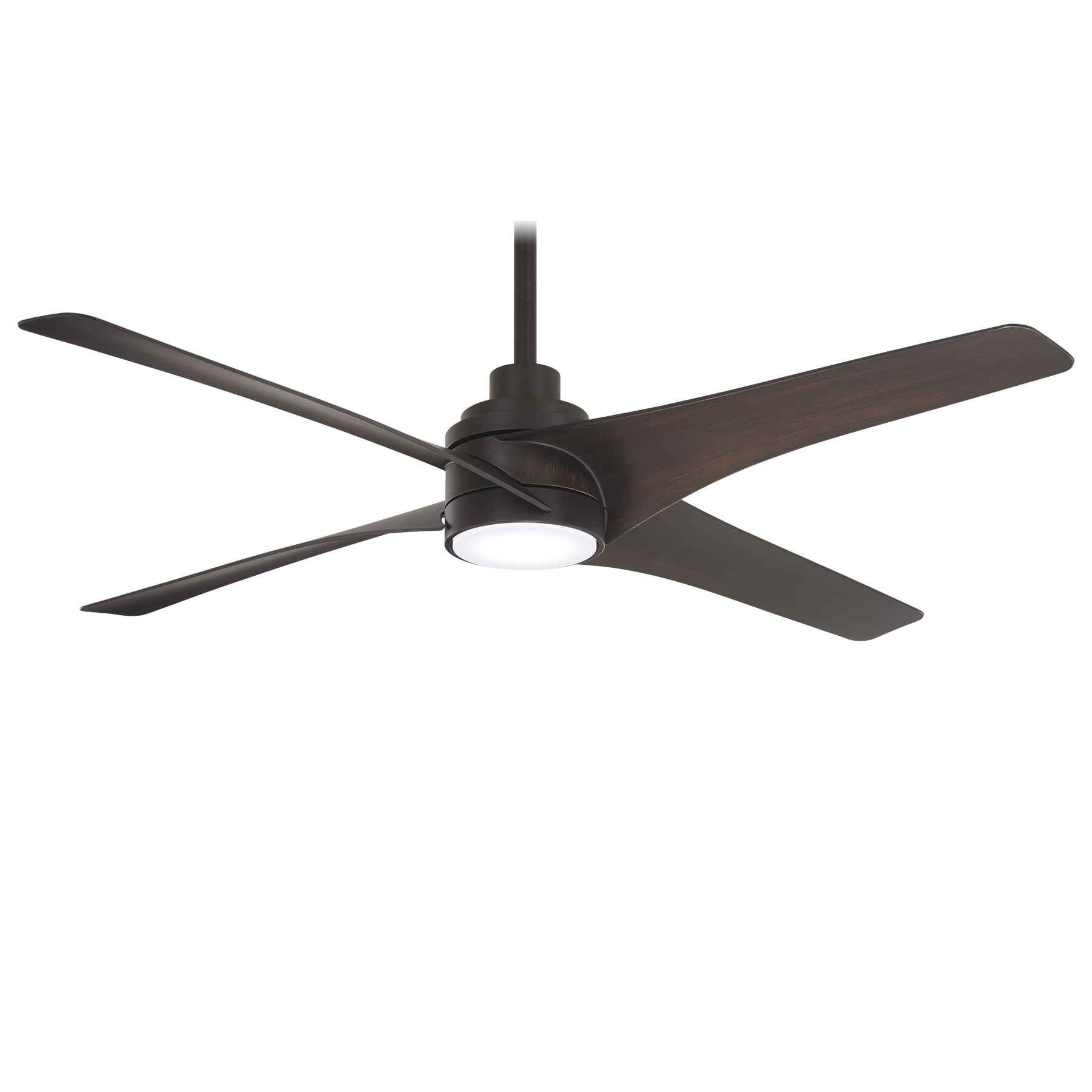

56" 4-Blade LED Ceiling Fan in Kocoa Finish with Kocoa Blades and an Etched Lens

Available Finish: Kocoa

PRODUCT FAMILY

Swept by Minka-Aire®

F543L-DK
Swept - LED 56" Ceiling Fan

F543L-DK Minka-Aire®

F543L-KA
Swept - LED 56" Ceiling Fan

F543L-KA Minka-Aire®

F543L-SL
Swept - LED 56" Ceiling Fan

F543L-SL Minka-Aire®

F543L-WHF
Swept - LED 56" Ceiling Fan

F543L-WHF Minka-Aire®

F543L-CL
Swept - LED 56" Ceiling Fan

F543L-CL Minka-Aire®

YOU MAY ALSO LIKE

F410L-BS
Slant - LED 36" Ceiling Fan

F410L-BS Minka-Aire®

F902L-CH
Bling - LED 56" Ceiling Fan

F902L-CH Minka-Aire®

F765L-BN/SL
Transonic - 56" LED Ceiling Fan

F765L-BN/SL Minka-Aire®

F797L-CL
Falco - 54" LED Flush Mount Ceiling Fan

F797L-CL Minka-Aire®

F749L-BN
Skyhawk - LED 60" Ceiling Fan

F749L-BN Minka-Aire®

F749L-WHF
Skyhawk - LED 60" Ceiling Fan

F749L-WHF Minka-Aire®

F517L-WH
Concept™ I - LED 52" Ceiling Fan

F517L-WH Minka-Aire®

F519L-ORB
Concept™ II - LED 52" Ceiling Fan

F519L-ORB Minka-Aire®

F905L-SL
Artemis™ XL5 - LED 62" Ceiling Fan

F905L-SL Minka-Aire®

F625L-CL
Skinnie 44" - LED 44" Ceiling Fan

F625L-CL Minka-Aire®

Swept - LED 56" Ceiling Fan

SKU: F543L-KA
Brand: Minka-Aire®
Finish: Kocoa

Measurements

Blade Material: ABS
Blade Sweep: 56
Blade Pitch: 26 DEGREES
Downrod 1: 6
Power: DC
Motor Size: DC 123 X 30 MM

Control Method

Control Type: FULL FUNCTION HAND HELD REMOTE
Reverse Capable: Yes

Lamping

Light Kit: Yes
Light Kit Description: 1-20W LED MODULE
Bulb: Z04 LED
Bulb/LED Included: Yes
Socket Type: Y06 LED MODULE
Max Wattage: 20
Dimmable: Y

Shade

Shade Finish: WHITE
Shade Qty: 1

Low Speed

RPM: 50
Amps: 0.08
Watts: 3.5
CFM: 2670.0

High Speed

RPM: 149
Amps: 0.4
Watts: 24.52
CFM: 6896.0

pdf icon

Instruction Manual - English

download pdf
pdf icon

Instruction Manual - Spanish

download pdf
pdf icon

Product Specifications

download pdf
