Concept™ I - LED 52" Ceiling Fan

F517L-WH Minka-Aire®
NOTIFY ME
Description

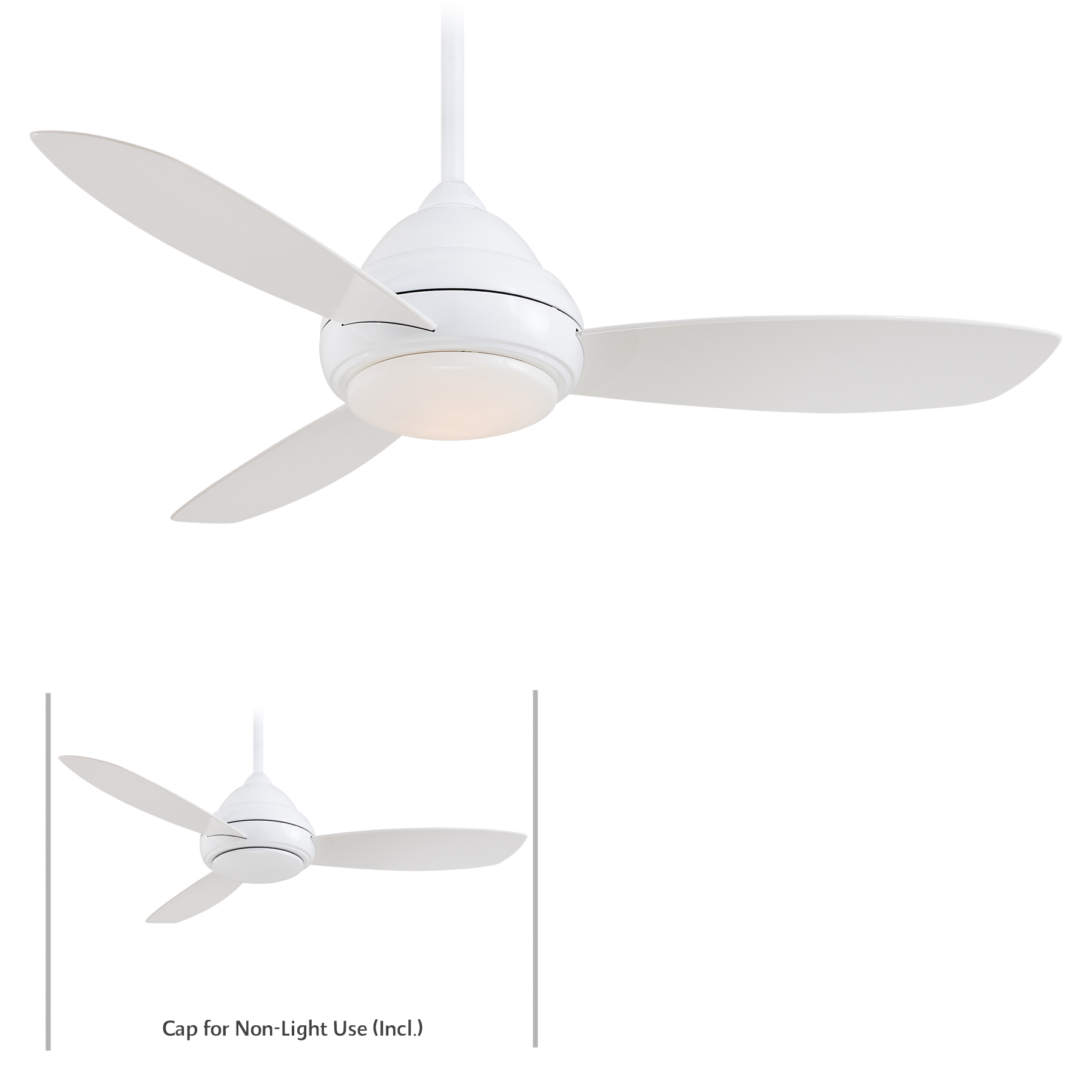

52" 3-Blade LED Ceiling Fan in White Finish with White Blades with Etched White Glass

Available Finish: White

PRODUCT FAMILY

Concept™ I by Minka-Aire®

F476L-BNW
Concept™ I Wet - LED 52" Ceiling Fan

F476L-BNW Minka-Aire®

F476L-ORB
Concept™ I Wet - LED 52" Ceiling Fan

F476L-ORB Minka-Aire®

F476L-WH
Concept™ I Wet - LED 52" Ceiling Fan

F476L-WH Minka-Aire®

F477L-BNW
Concept™ I Wet - LED 58" Ceiling Fan

F477L-BNW Minka-Aire®

F477L-ORB
Concept™ I Wet - LED 58" Ceiling Fan

F477L-ORB Minka-Aire®

F477L-WH
Concept™ I Wet - LED 58" Ceiling Fan

F477L-WH Minka-Aire®

F517L-BN
Concept™ I - LED 52" Ceiling Fan

F517L-BN Minka-Aire®

F517L-WH
Concept™ I - LED 52" Ceiling Fan

F517L-WH Minka-Aire®

YOU MAY ALSO LIKE

F797L-CL
Falco - 54" LED Flush Mount Ceiling Fan

F797L-CL Minka-Aire®

F543L-KA
Swept - LED 56" Ceiling Fan

F543L-KA Minka-Aire®

F676L-BRS/SL
Vital - LED 44" Ceiling Fan

F676L-BRS/SL Minka-Aire®

F519L-BN
Concept™ II - LED 52" Ceiling Fan

F519L-BN Minka-Aire®

F410L-WH
Slant - LED 36" Ceiling Fan

F410L-WH Minka-Aire®

F518L-WH
Concept™ II - LED 44" Ceiling Fan

F518L-WH Minka-Aire®

F797L-BN/SL
Flaco - 54" LED Flush Mount Ceiling Fan

F797L-BN/SL Minka-Aire®

F749L-BN
Skyhawk - LED 60" Ceiling Fan

F749L-BN Minka-Aire®

F905L-WH
Artemis™ XL5 - LED 62" Ceiling Fan

F905L-WH Minka-Aire®

F797L-WHF
Falco - 54" LED Flush Mount Ceiling Fan

F797L-WHF Minka-Aire®

Concept™ I - LED 52" Ceiling Fan

SKU: F517L-WH
Brand: Minka-Aire®
Finish: White

Measurements

Blade Material: ABS
Blade Sweep: 52
Blade Pitch: 14
Downrod 1: 6
Power: AC
Motor Size: AC 172 X 20 MM

Control Method

Control Type: FULL FUNCTION 256 BIT HAND HELD REMOTE
Reverse Capable: Yes

Lamping

Light Kit: Yes
Light Kit Description: 1-AC 16W LED MODULE
Bulb: Z42 LED
Bulb/LED Included: Yes
Socket Type: Y40 LED MODULE
Max Wattage: 16
Dimmable: Y

Shade

Shade Finish: WHITE OPAL GLASS
Shade Qty: 1

Low Speed

RPM: 75
Amps: 0.243
Watts: 13.47
CFM: 2133.0

High Speed

RPM: 183
Amps: 0.517
Watts: 61.37
CFM: 5204.0

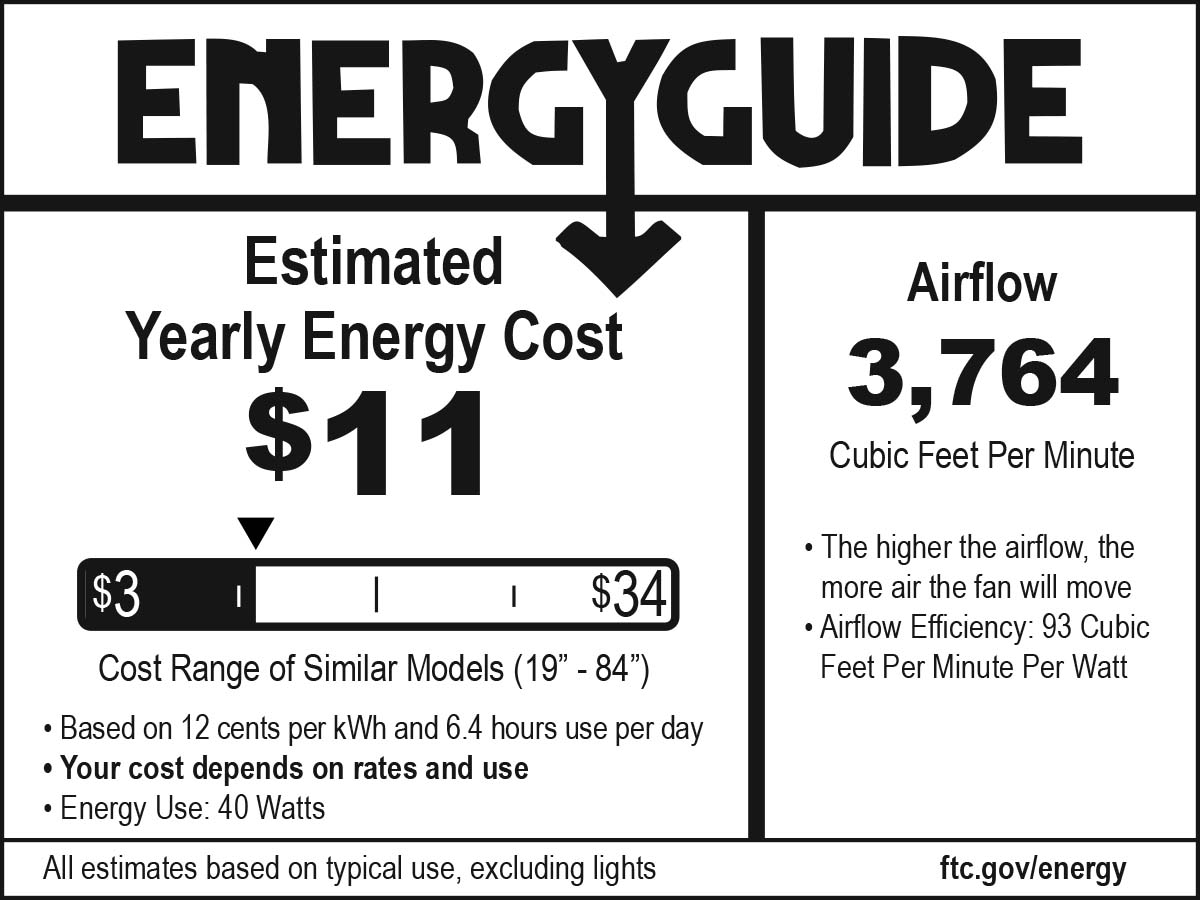

energy-guide

Patent

U.S. Patent(s): 7,008,192

pdf icon

Instruction Manual - English

download pdf
pdf icon

Instruction Manual - Spanish

download pdf
pdf icon

Product Specifications

download pdf
