New Era - 52" Ceiling Fan

F513-KA Minka-Aire®
NOTIFY ME
Description

52" 4-Blade Ceiling Fan in Kocoa Finish with Reversible Toned Medium Maple with Dark Maple Blades

Available Finish: Kocoa

PRODUCT FAMILY

New Era by Minka-Aire®

F513-KA
New Era - 52" Ceiling Fan

F513-KA Minka-Aire®

F513-WH
New Era - 52" Ceiling Fan

F513-WH Minka-Aire®

YOU MAY ALSO LIKE

F688-KA

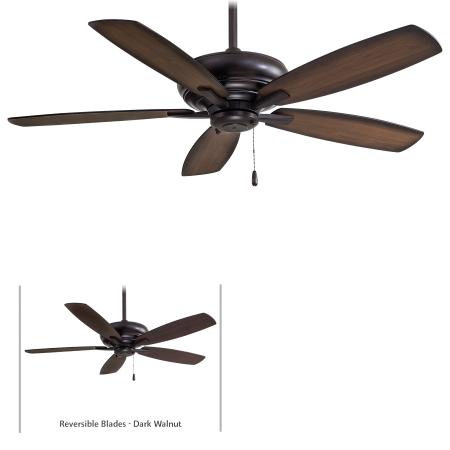

Kola - 52" Ceiling Fan

F688-KA Minka-Aire®

F695-WH
Kafé - 52" Ceiling Fan

F695-WH Minka-Aire®

F696-KA
Kafé-XL - 60" Ceiling Fan

F696-KA Minka-Aire®

F695-KA
Kafé - 52" Ceiling Fan

F695-KA Minka-Aire®

F696-BNK
Kafé-XL - 60" Ceiling Fan

F696-BNK Minka-Aire®

F695-CL
Kafé - 52" Ceiling Fan

F695-CL Minka-Aire®

F688-WH
Kola - 52" Ceiling Fan

F688-WH Minka-Aire®

F695-HBZ
Kafé - 52" Ceiling Fan

F695-HBZ Minka-Aire®

F689-WH
Kola-XL - 60" Ceiling Fan

F689-WH Minka-Aire®

F696-WH
Kafé-XL - 60" Ceiling Fan

F696-WH Minka-Aire®

New Era - 52" Ceiling Fan

SKU: F513-KA
Brand: Minka-Aire®
Finish: Kocoa

Measurements

Blade Material: Plywood Construction
Blade Sweep: 52
Blade Pitch: 14
Downrod 1: 6
Power: AC
Motor Size: AC 172 X 16 MM

Control Method

Control Type: FULL FUNCTION 256-BIT HAND HELD REMOTE
Reverse Capable: Yes

Lamping

Light Kit Description: LIGHT KIT ADAPTABLE
Dimmable: N

Shade

Shade Finish: NOT APPLICABLE

Low Speed

RPM: 66
Amps: 0.24
Watts: 11.4
CFM: 1754.0

High Speed

RPM: 192
Amps: 0.6
Watts: 71.95
CFM: 4801.0

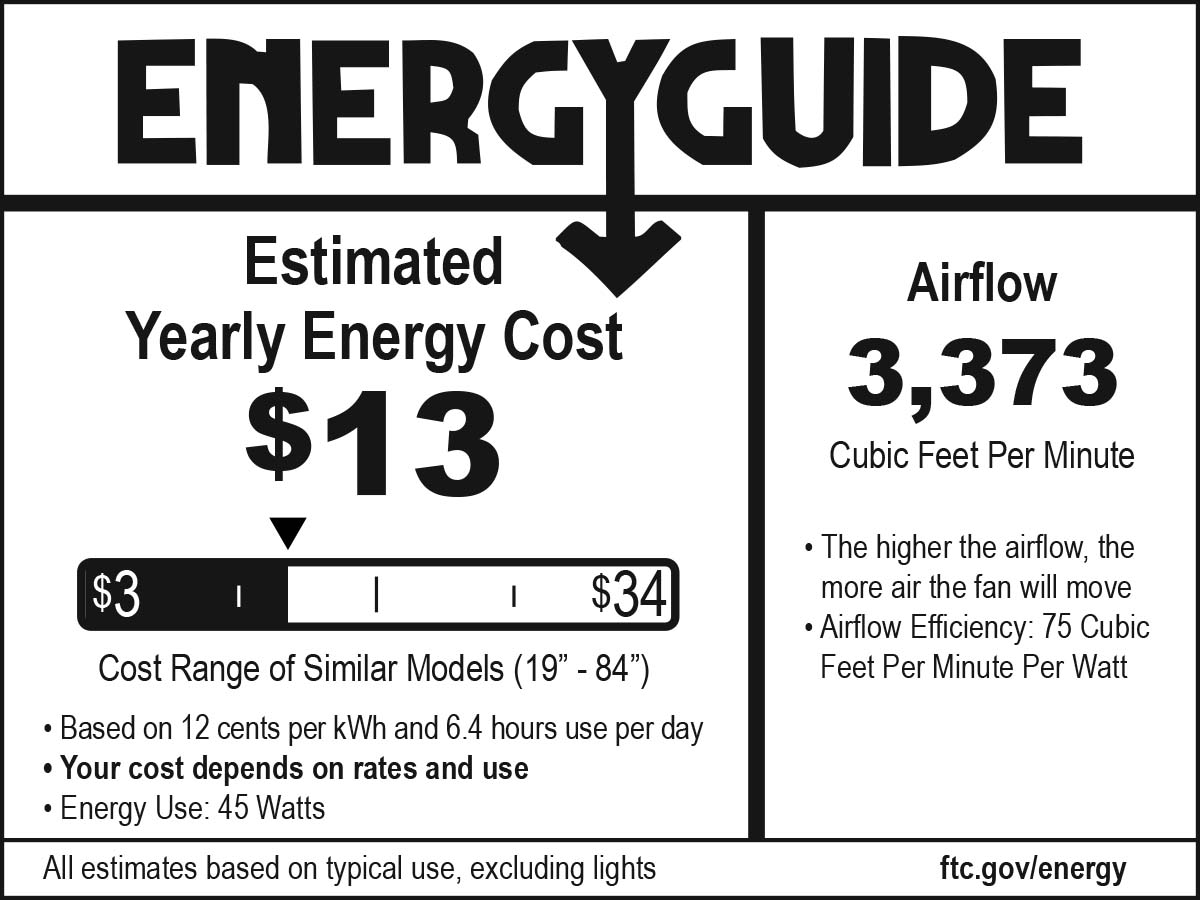

energy-guide

pdf icon

Instruction Manual - English

download pdf
pdf icon

Instruction Manual - Spanish

download pdf
pdf icon

Product Specifications

download pdf
