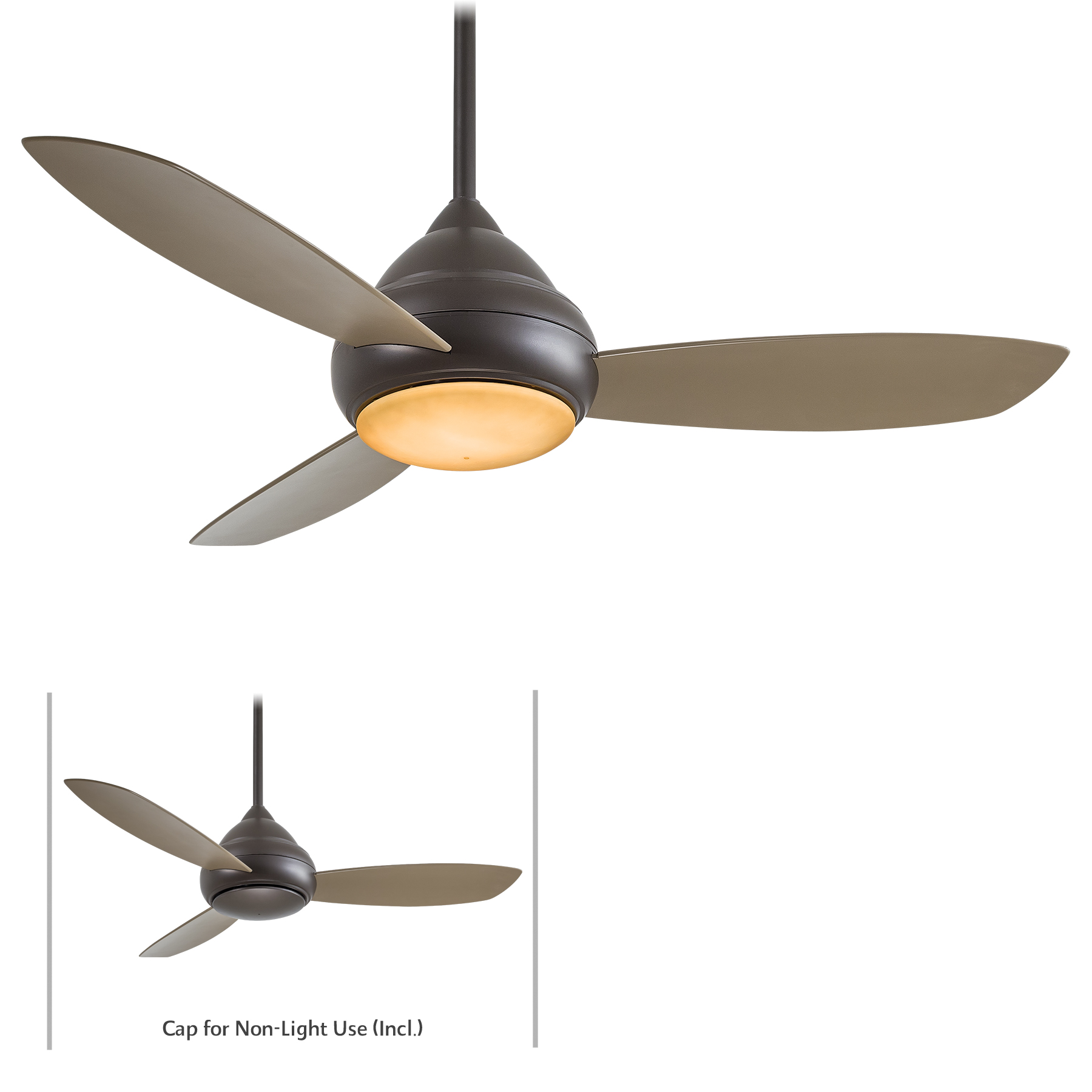

Concept™ I Wet - LED 52" Ceiling Fan

F476L-ORB Minka-Aire®
NOTIFY ME
Description

52" 3-Blade LED Ceiling Fan in Oil Rubbed Bronze Finish with Taupe Blades with Pietra Glass

Available Finish: Oil Rubbed Bronze
Blade Sweep:

PRODUCT FAMILY

Concept™ I by Minka-Aire®

F476L-BNW
Concept™ I Wet - LED 52" Ceiling Fan

F476L-BNW Minka-Aire®

F476L-ORB
Concept™ I Wet - LED 52" Ceiling Fan

F476L-ORB Minka-Aire®

F476L-WH
Concept™ I Wet - LED 52" Ceiling Fan

F476L-WH Minka-Aire®

F477L-BNW
Concept™ I Wet - LED 58" Ceiling Fan

F477L-BNW Minka-Aire®

F477L-ORB
Concept™ I Wet - LED 58" Ceiling Fan

F477L-ORB Minka-Aire®

F477L-WH
Concept™ I Wet - LED 58" Ceiling Fan

F477L-WH Minka-Aire®

F517L-BN
Concept™ I - LED 52" Ceiling Fan

F517L-BN Minka-Aire®

F517L-WH
Concept™ I - LED 52" Ceiling Fan

F517L-WH Minka-Aire®

YOU MAY ALSO LIKE

F593L-WH
Traditional Concept™ - LED Ceiling Fan

F593L-WH Minka-Aire®

F593L-PW
Traditional Concept™ - LED Ceiling Fan

F593L-PW Minka-Aire®

F625L-WHF
Skinnie 44" - LED 44" Ceiling Fan

F625L-WHF Minka-Aire®

F474L-ORB
Concept™ II Wet - LED 52" Ceiling Fan

F474L-ORB Minka-Aire®

F593L-ORB
Traditional Concept™ - LED Ceiling Fan

F593L-ORB Minka-Aire®

F474L-WH
Concept™ II Wet - LED 52" Ceiling Fan

F474L-WH Minka-Aire®

F625L-ORB
Skinnie 44" - 44" Ceiling Fan

F625L-ORB Minka-Aire®

Concept™ I Wet - LED 52" Ceiling Fan

SKU: F476L-ORB
Brand: Minka-Aire®
Finish: Oil Rubbed Bronze

Measurements

Blade Material: ABS
Blade Sweep: 52
Blade Pitch: 14 degrees
Downrod 1: 6
Power: AC
Motor Size: AC 188 X 20 MM

Control Method

Control Type: FULL FUNCTION 256-BIT WALL CONTROL SYSTEM
Reverse Capable: Yes

Lamping

Light Kit: Yes
Light Kit Description: 1-AC 16W LED MODULE
Bulb: Z57 LED
Bulb/LED Included: Yes
Socket Type: Y40 LED MODULE
Max Wattage: 16
Dimmable: Y

Shade

Shade Finish: PIETRA
Shade Qty: 1

Low Speed

RPM: 93
Amps: 0.243
Watts: 16.48
CFM: 2821.0

High Speed

RPM: 188
Amps: 0.439
Watts: 52.42
CFM: 5389.0

energy-guide

Patent

U.S. Patent(s): 7,008,192

pdf icon

Instruction Manual - English

download pdf
pdf icon

Instruction Manual - Spanish

download pdf
pdf icon

Product Specifications

download pdf
